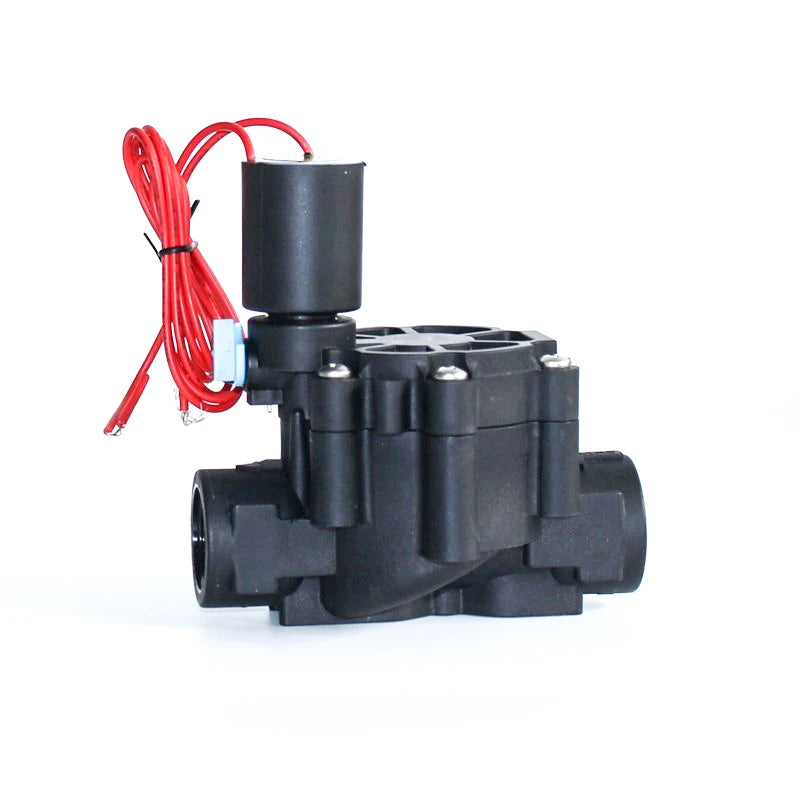

Specification

Thread: female (BSP, G thread,)
Medium: Water,
Type: Normally Closed

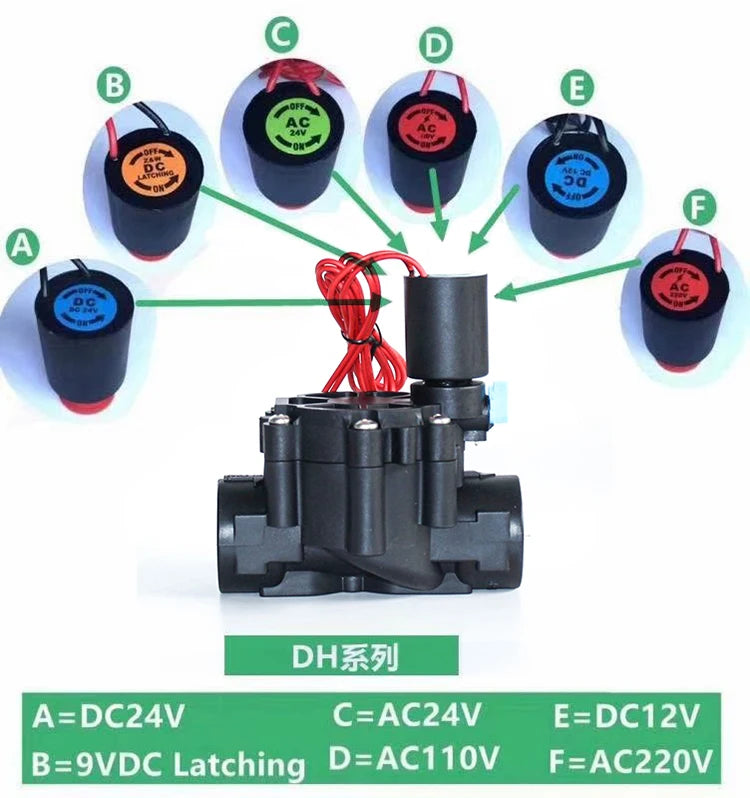

Working Voltage: 220VAC, 110VAC, 24VDC, 24VAC, 12VDC.
Working Pressure: 1-10bar for water
Operation: Pilot
Body Material: Nylon
Medium temperature: -5-80degree
Temperature: Water temperatures 0-53℃
Environment temps 80℃
Application: Widely used in agriculture and landscaping irrigation system, like large area of lawn, stadium, agriculture,indutrial dust and water treatment.
Working Pressure: 1.03-10.34 bar
Flow: 050D 5m3/h，075D 5m3/h，100D 9m3/h

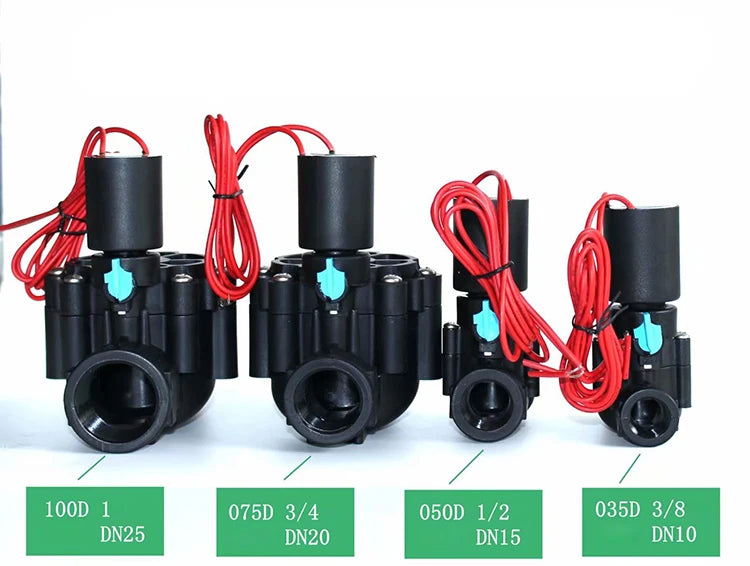

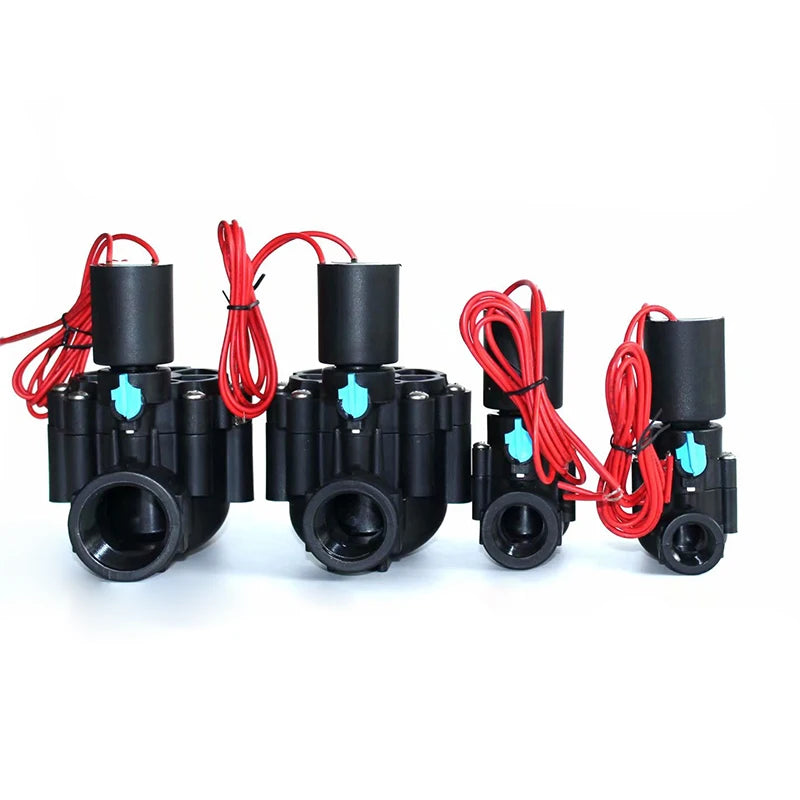

Nominal Diameter: DN15, DN20, DN25, Port Size: 1/2",3/4" ,1”
Features:
1,Pilot operated diaphragm structurte, nylon reinforced.
2,Double filltration to protect solenoid core
3,Waterproof sealing coil
4,Closed slowly function to prevent the water hammer
Material
Body: reinforced nylon
Sealing :NBR
the movable iron core: stainless steel 430F
Spring:ss304
Shading coil: red copper
